JDMSPEED Gear Lock Nut and Retainer Kit Upgraded Fits For DODGE NV4500 4WD 5th 5013887AA
FREE SHIPPING IN THE USA
ONE YEAR WARRANTY
100% brand new and high quality

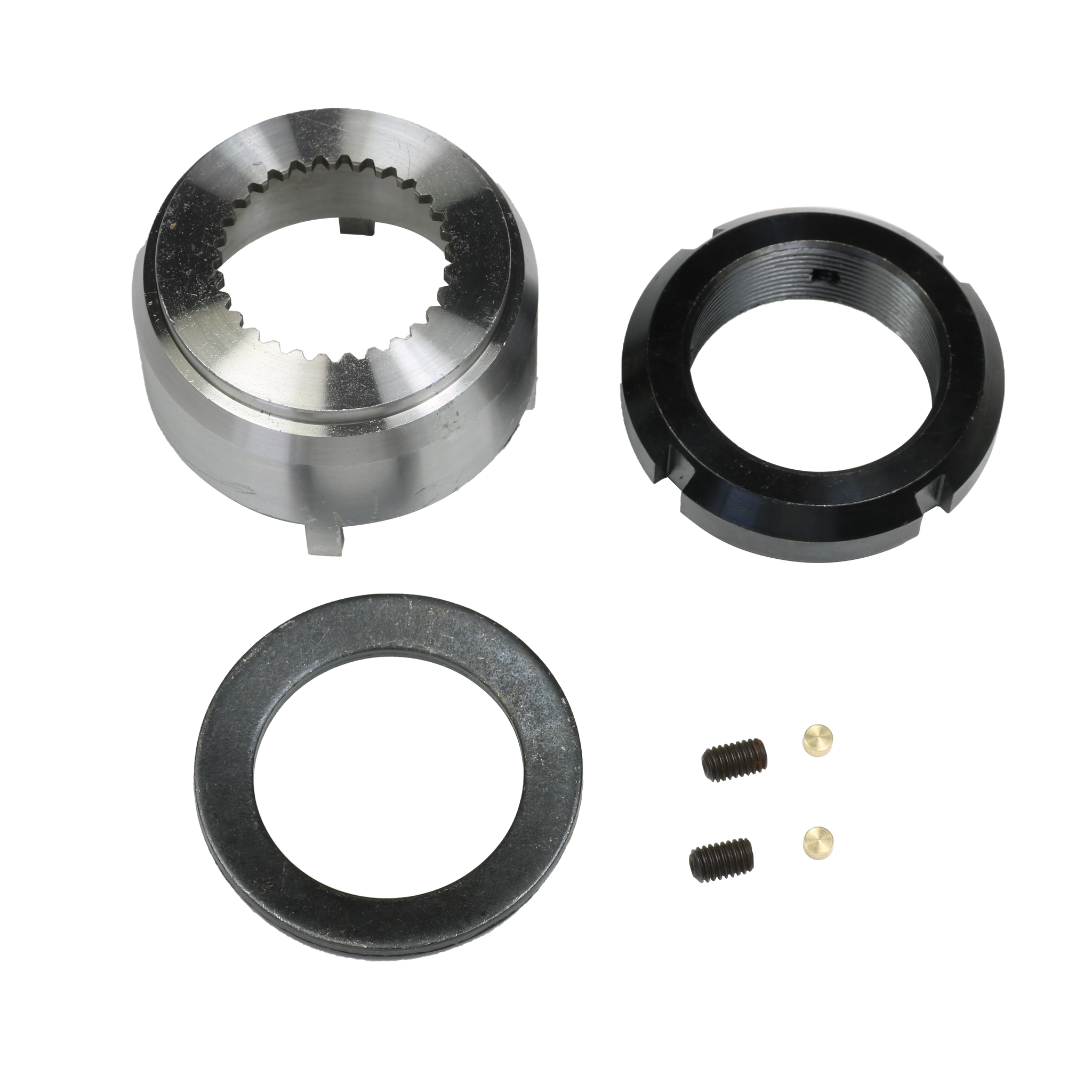

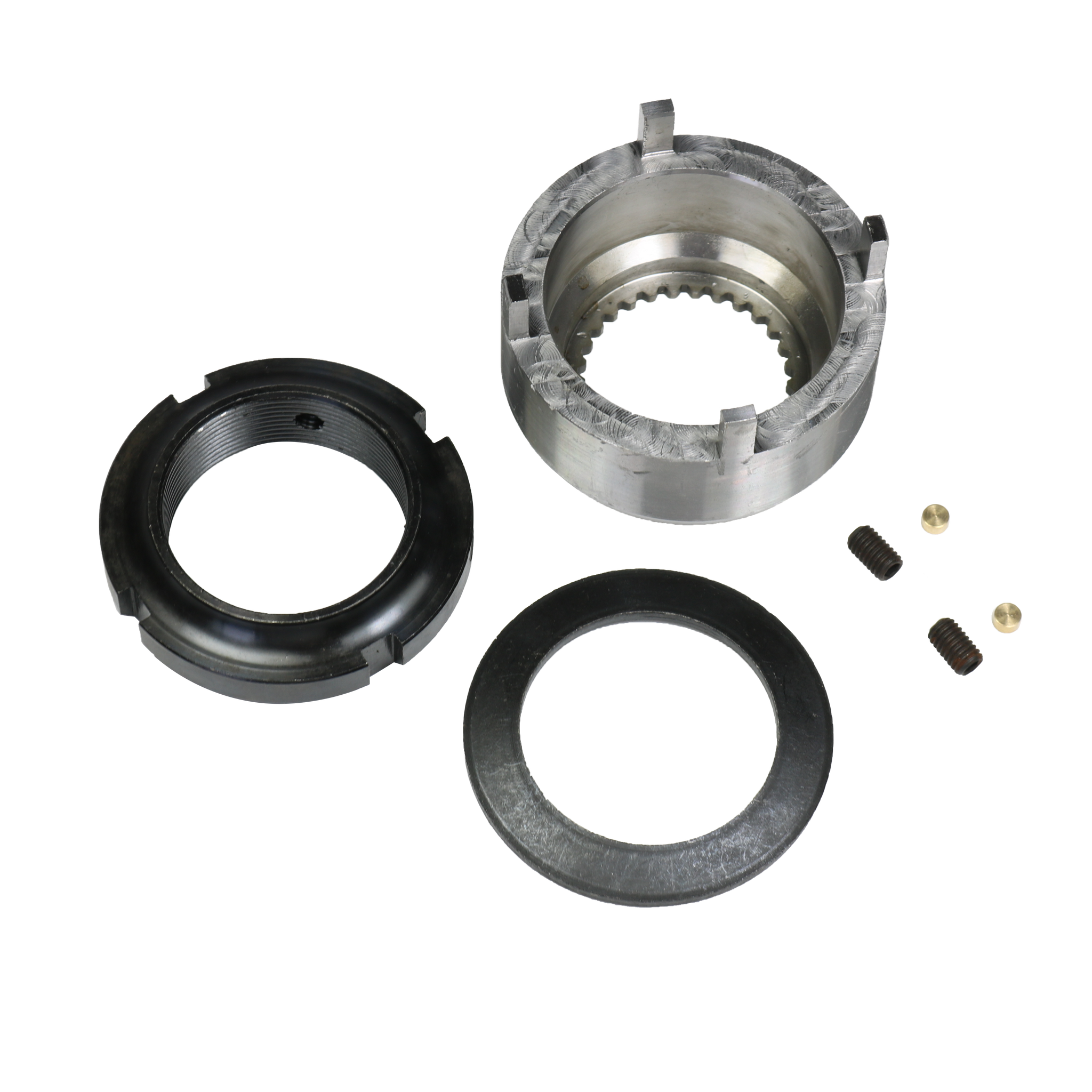

Package includes:
2x Set Screws
2x Brass Pucks
1x 5th Gear Nut
1x Spring Washer
1x 5th Gear Lock Nut Retainer
1.Remove transfer case from vehicle, and then remove extension housing from transmission.
2.Inspect for damage to the main shaft, gears & lock nut
3.Reinstall the locknut on the shaft. Factory recommended torque is 280 ft. lbs ( real, real
tight, locknut retainer will keep it from loosen again )
4. Slide the locknut retainer over the shaft splines and into the correct alignment position of
the locknut (4 Tabs), then tap with a hammer to verify full seated position.
Dodge 1994 - 2005 Ram 2500 and 3500 4WD with NV4500 transmissions (5.9L and 6.7L)
Only fits 29-spline output shafts (DODGE 4wd models)
Does not work with GM/Cheverolet NV4500 transmissions.
