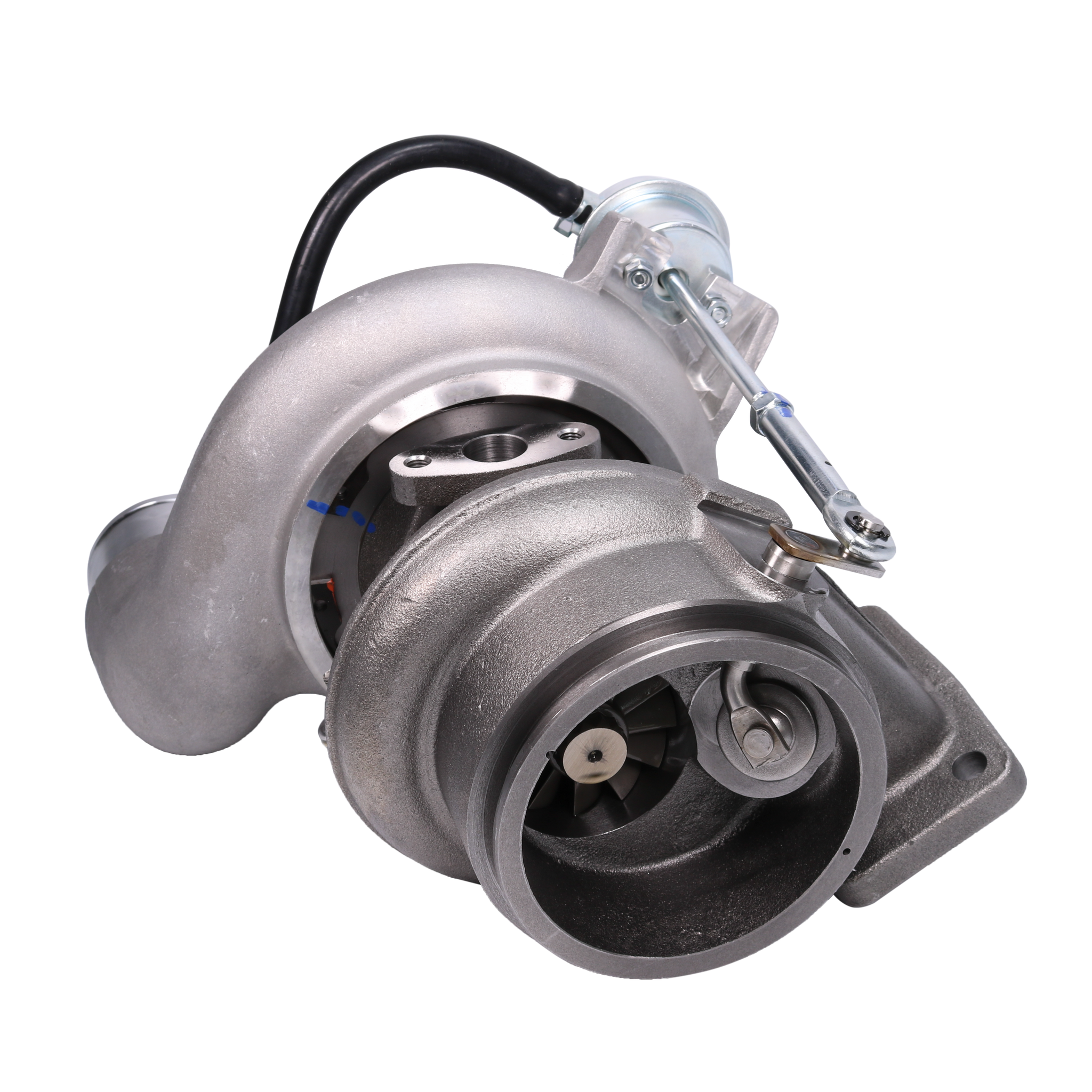

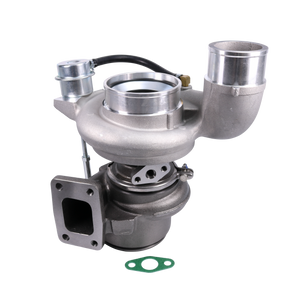

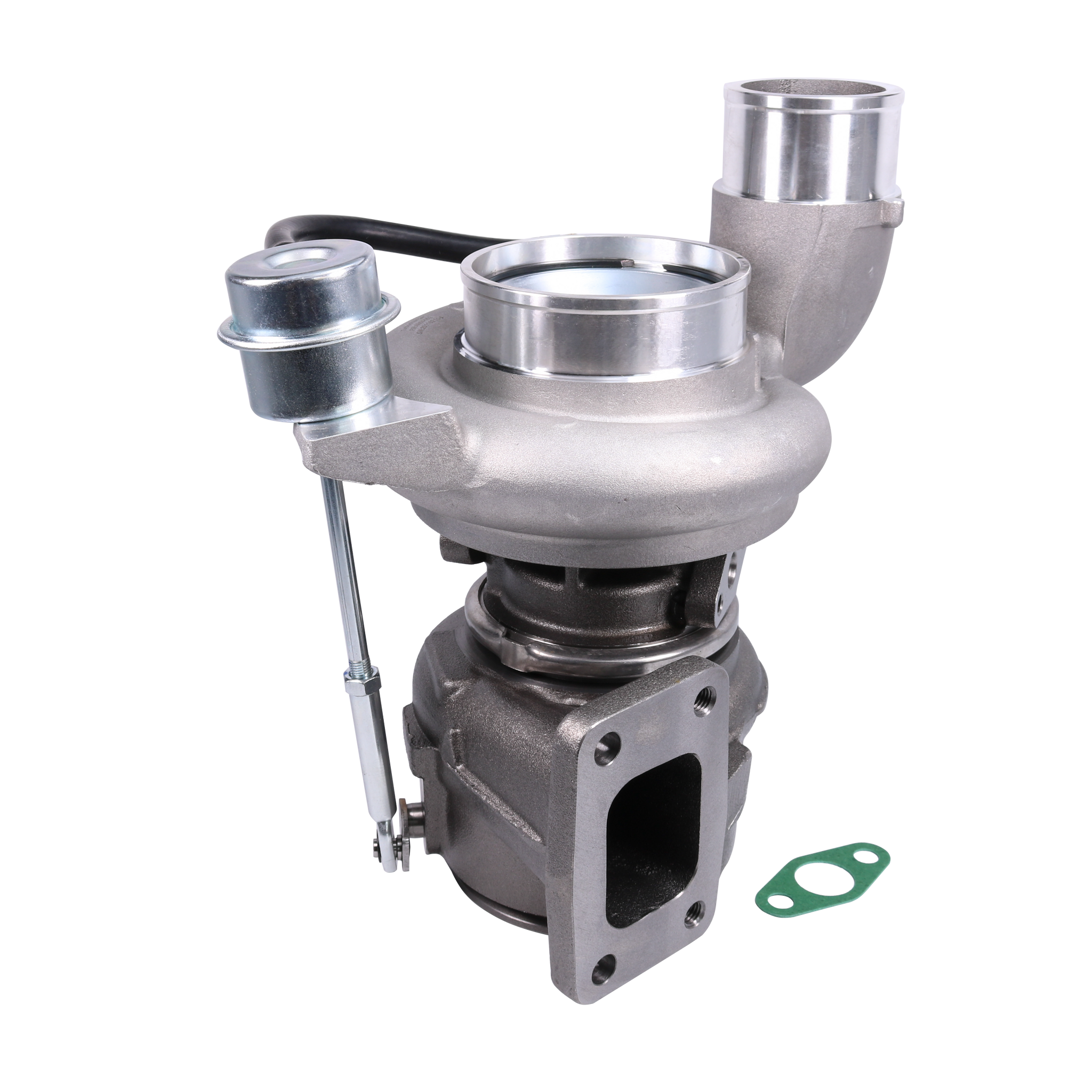

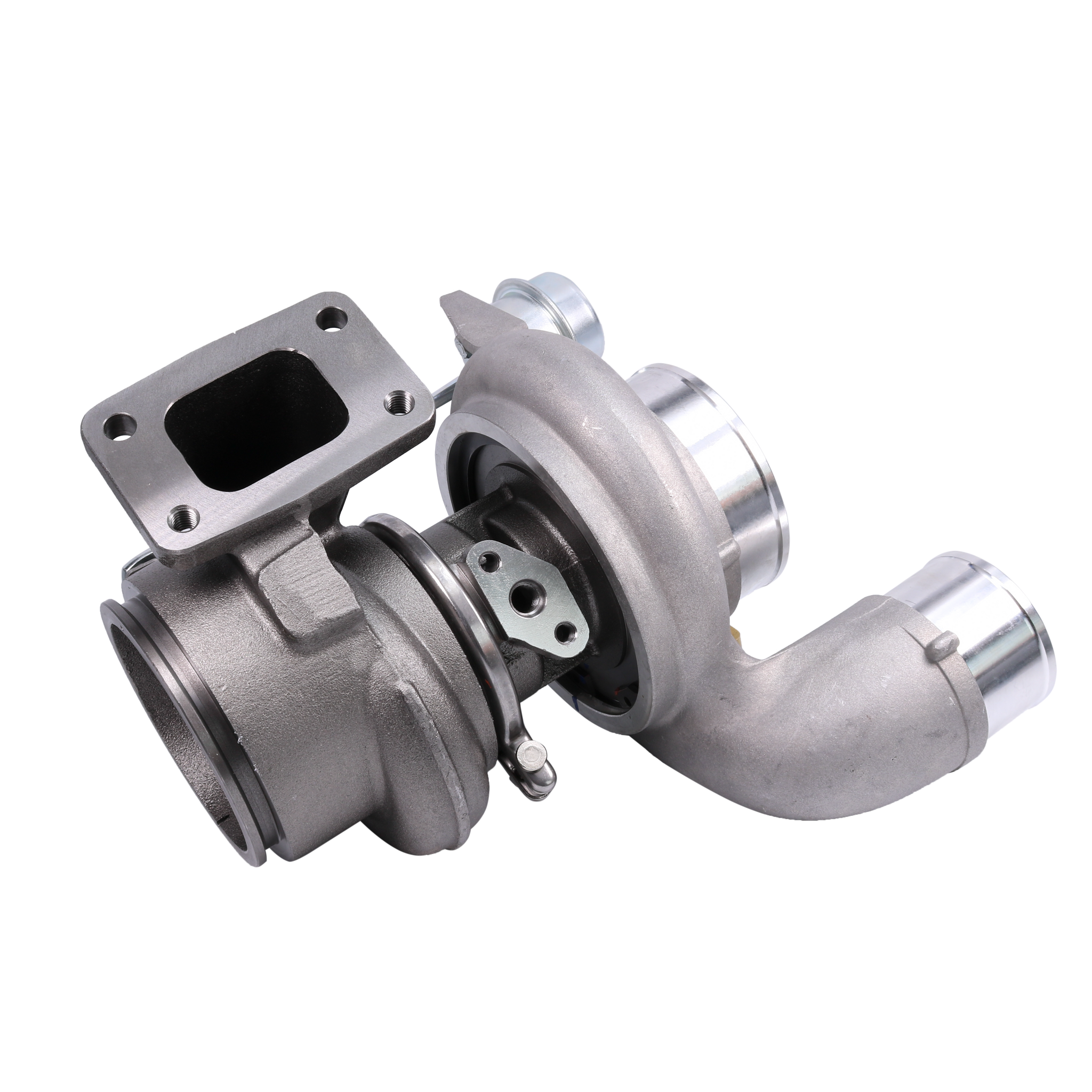

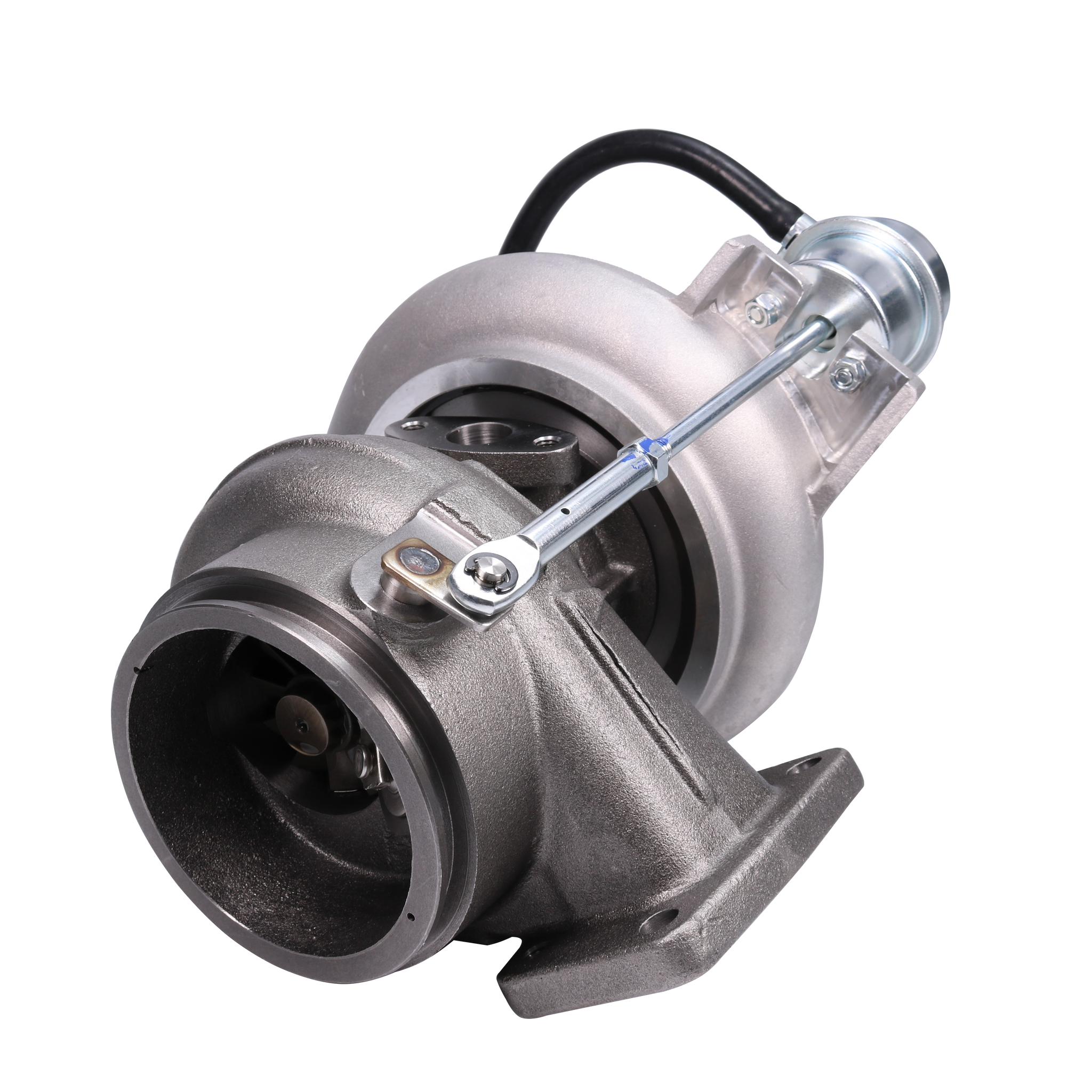

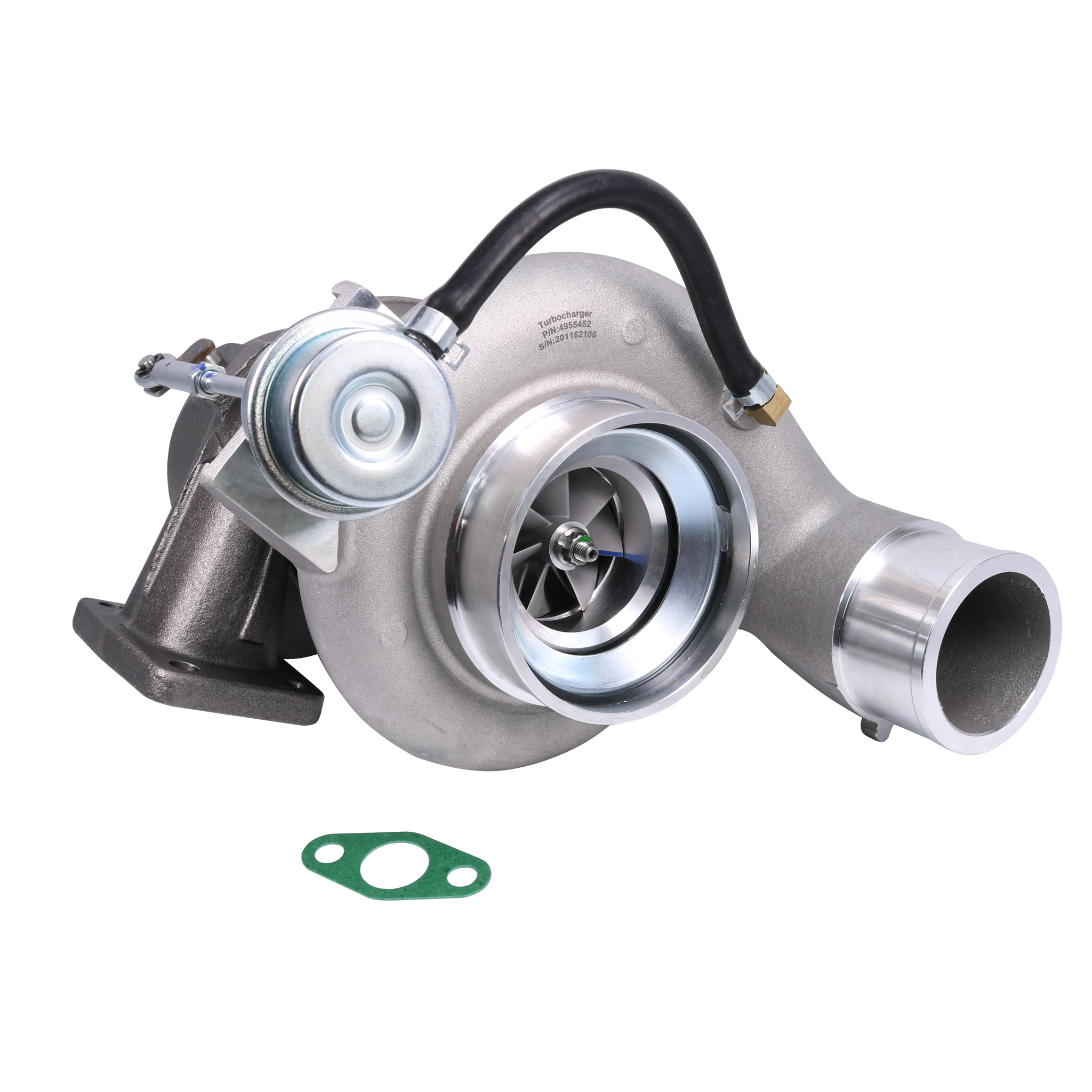

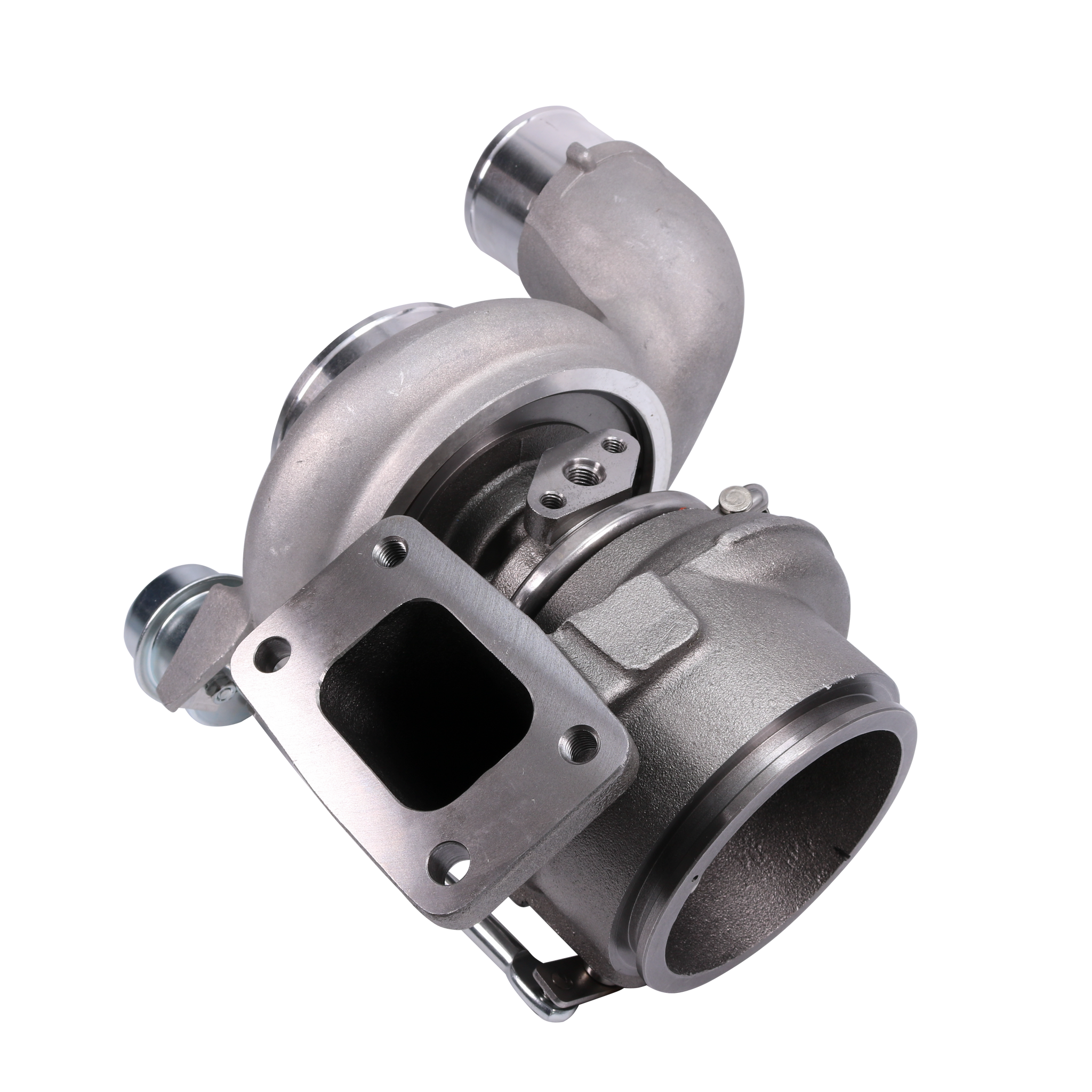

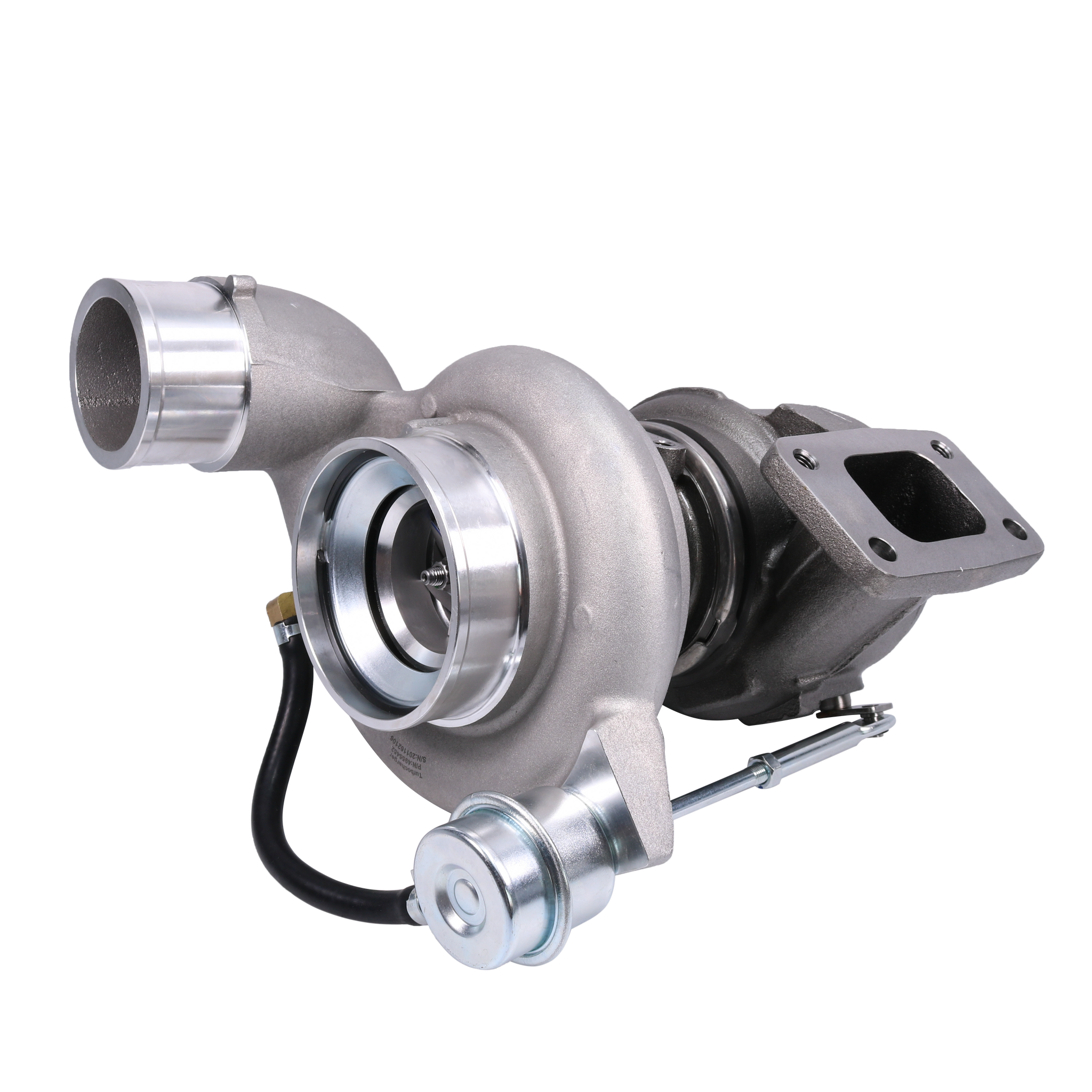

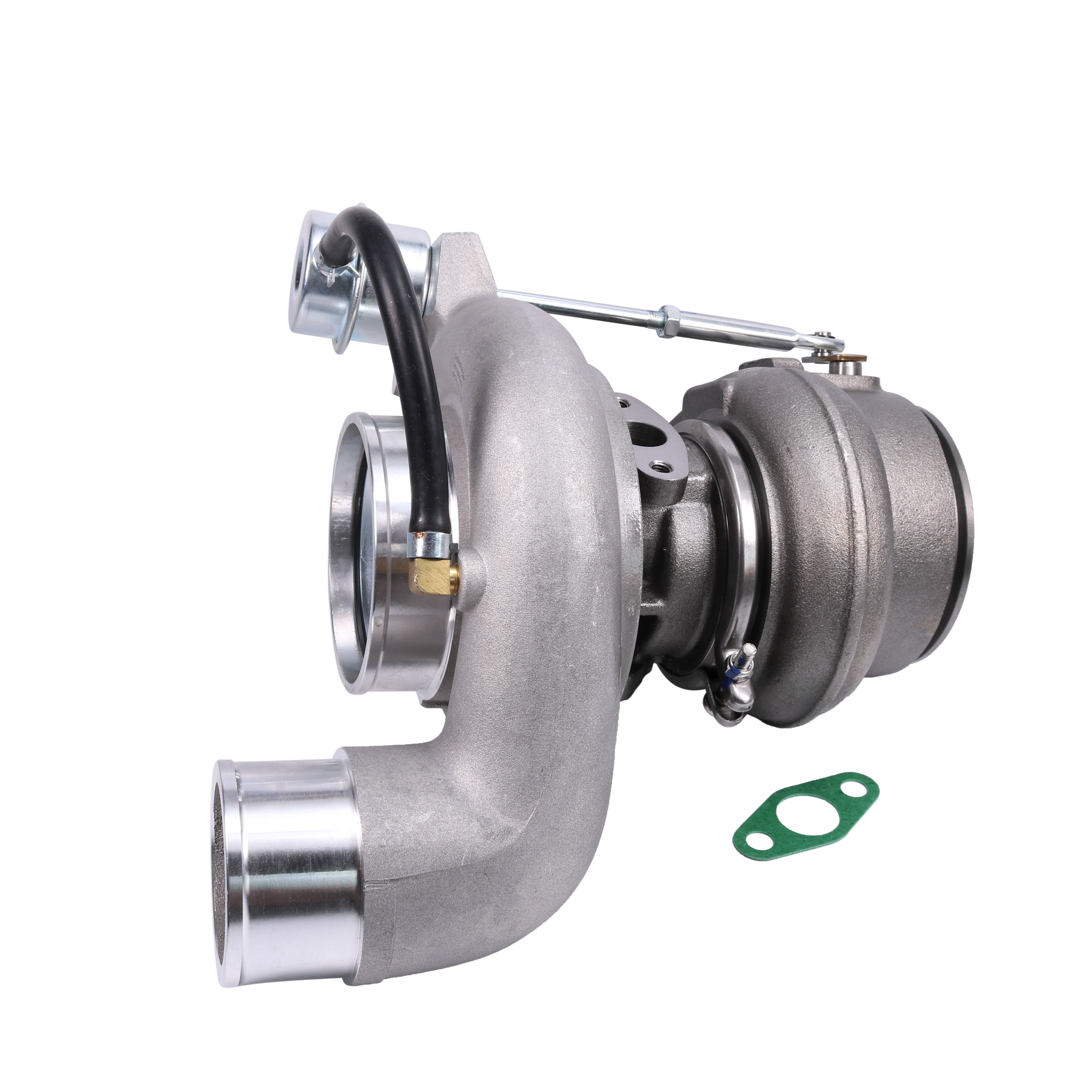

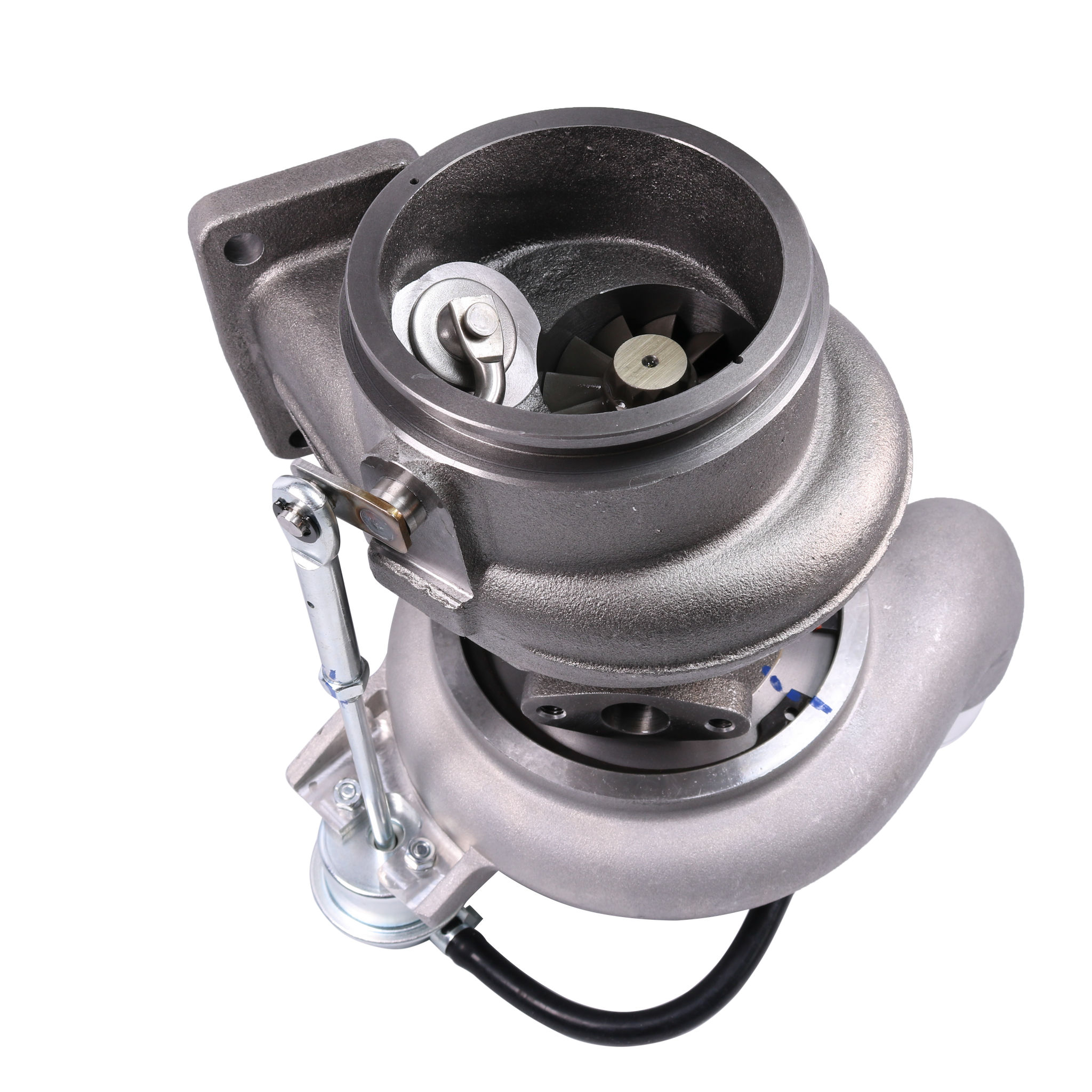

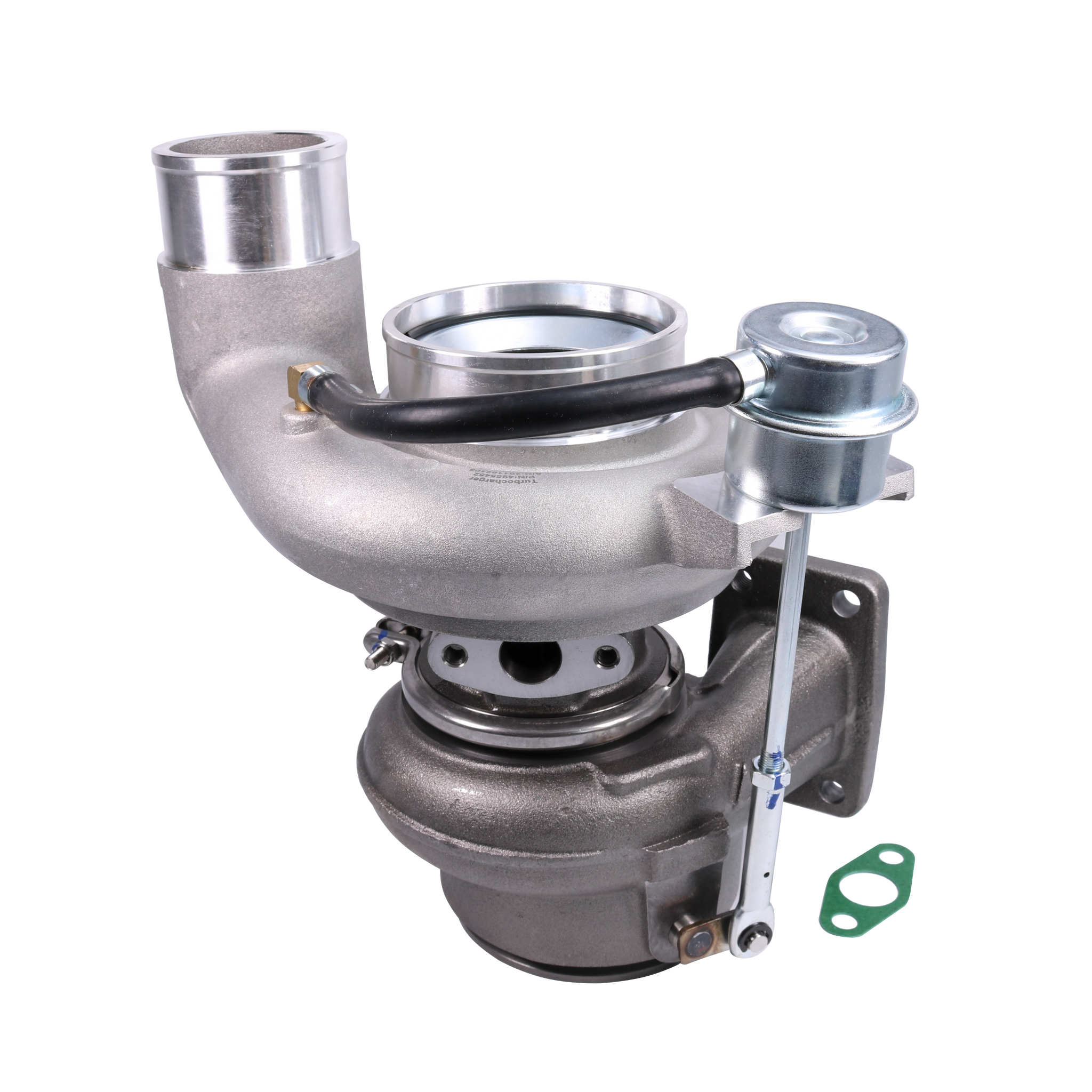

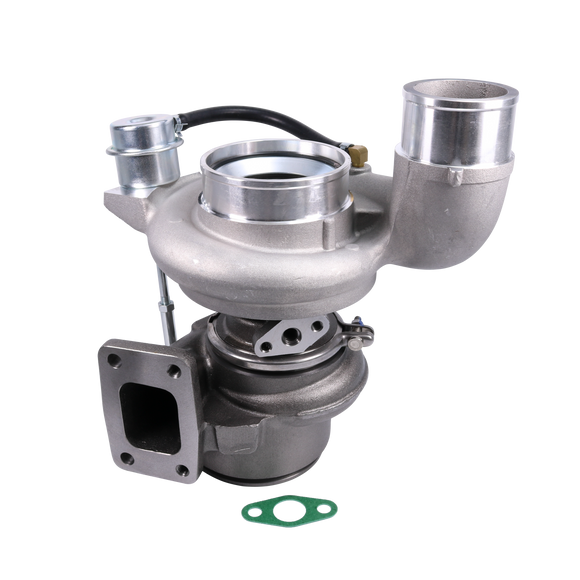

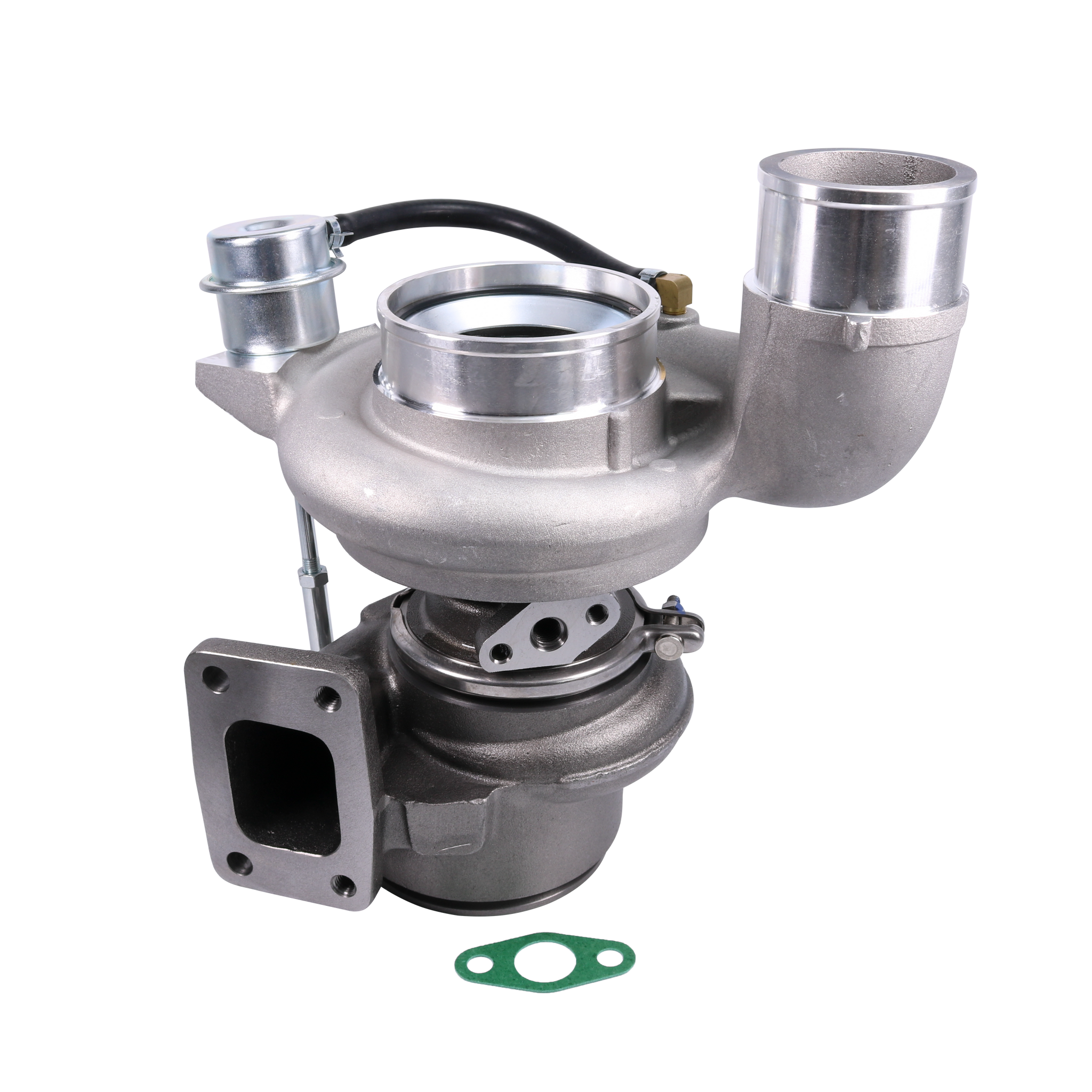

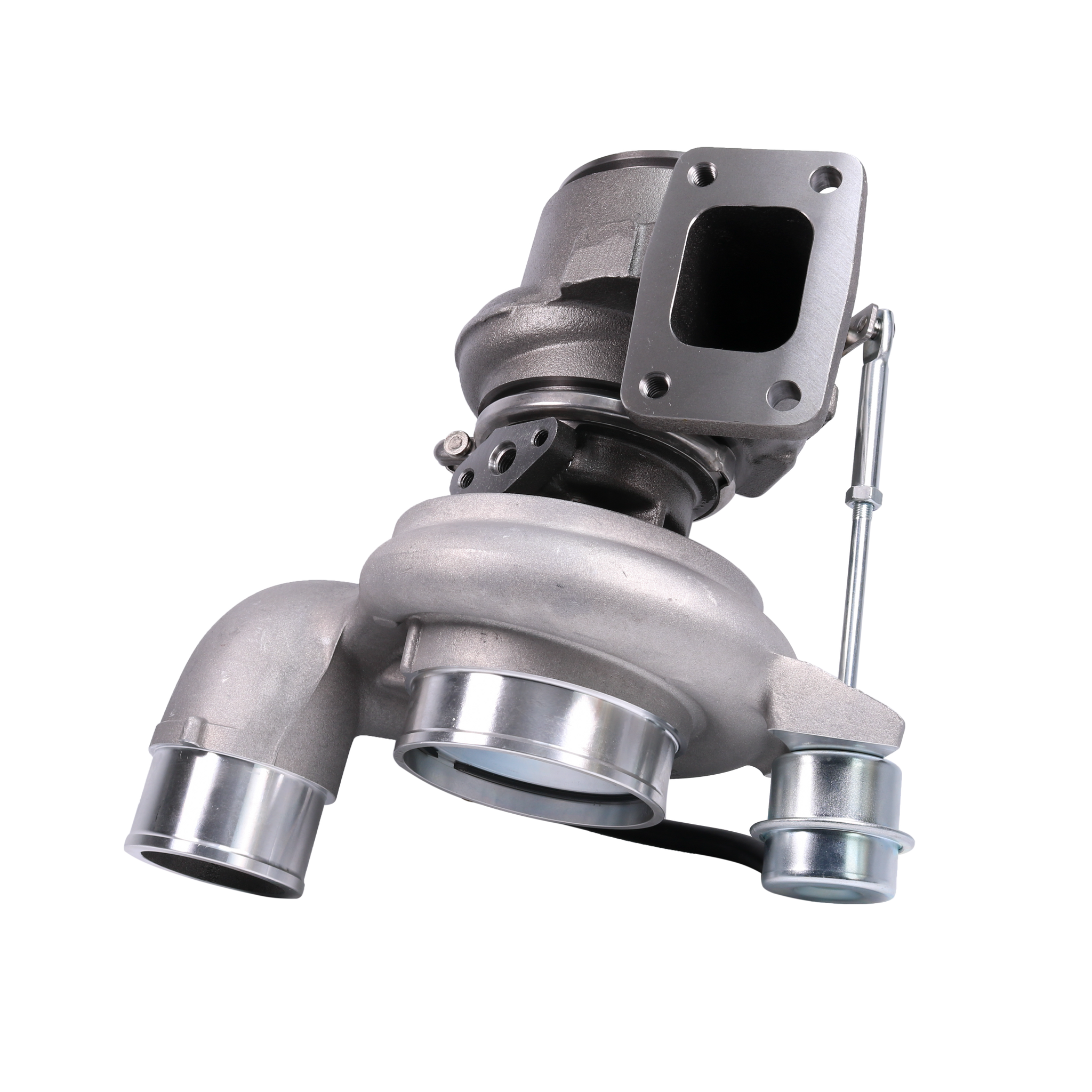

JDMSPEED HY35W T3 Turbo Charger For Dodge Ram 6BT 5.9L 2500 3500 Cummins 2003-2007

Features:

100% brand new and high quality

Part Number:

3599810, 3599811, 4089392, 4035044, 4955452
3593075, 4033667, 4035044, 4089141, 4089392NX
408939200, 3599867, 4033667, 4033667H
4089392RX, 5086863, 5086863AA, 5086863AB

Specific:
Turbo Model: HY35W, HY35W-E7755AQ/B10JX35
Engine Type: ISB, HY35W
Engine  Code: 6BTA

Hose power: Capable of Boosting Horse Power up to 400+ BHP
Exhaust (Turbo Manifold) Flange: Standard T3
Exhaust (Downpipe) Flange: Standard HY for Dodge Cummins 4.375" Diameter V-Band
Bearing Type: Journal Bearing

Compressor:
Trim:69
Inducer Diamter:68.7
Exducer Diamter:97.8
A/R: 0.66

Turbine:
Trim: 92
Inducer Diamter: 87.4
Exducer Diamter: 77.8
A/R: 0.96

Professional installation and modification is highly recommended (No Instruction Included)

Fitment:

For Cummins Truck DP, Leyland with 6BTA Engine 2000-2005

For Dodge RAM 2500/3500 with ISB Engine 5.9L 2003-2004

Exhaust elbow is not Included.

This item don't fit for HE351CW engine and not has sensor hole, please double check your old part before purchase
